Teleport can provide secure access to PostgreSQL via the Teleport Database Service. This allows for fine-grained access control through the Teleport RBAC system.

The Teleport Database Service proxies traffic from database clients to self-hosted databases in your infrastructure. Teleport maintains a certificate authority (CA) for database clients. You configure your database to trust the Teleport database client CA, and the Teleport Database Service presents certificates signed by this CA when proxying user traffic. With this setup, there is no need to store long-lived credentials for self-hosted databases.

Meanwhile, the Teleport Database Service verifies self-hosted databases by checking their TLS certificates against either the Teleport database CA or a custom CA used with the database.

In this guide, you will:

1. Configure your PostgreSQL database for Teleport access.
2. Add the database to your Teleport cluster.
3. Connect to the database via Teleport.

작동 방식#

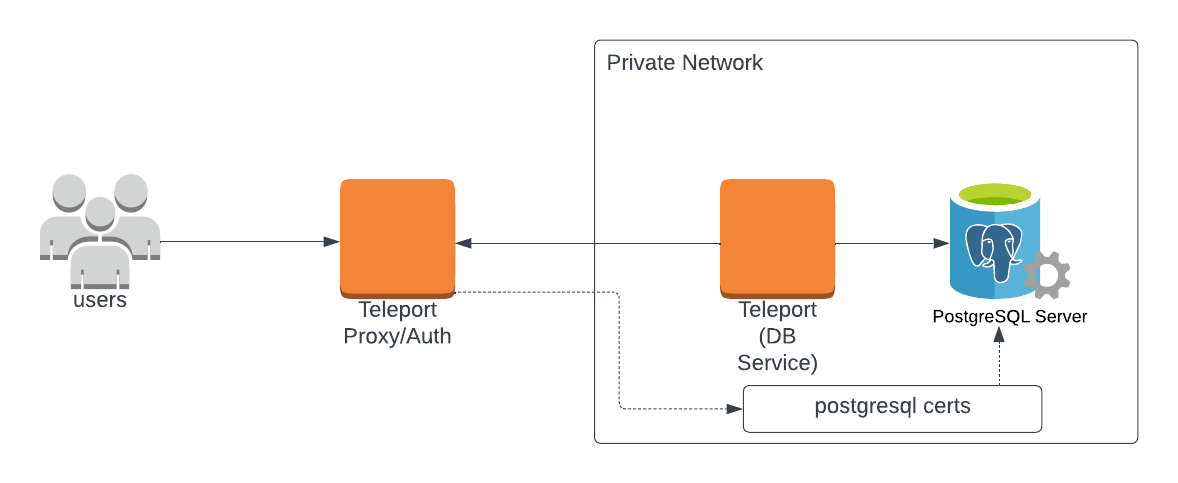

The Teleport Database Service authenticates to your self-hosted PostgreSQL database using mutual TLS. PostgreSQL trusts the Teleport certificate authority for database clients, and presents a certificate signed by either the Teleport database CA or a custom CA. When a user initiates a database session, the Teleport Database Service presents a certificate signed by Teleport. The authenticated connection then proxies client traffic from the user.

사전 조건#

• A running Teleport cluster. If you want to get started with Teleport, sign up for a free trial or set up a demo environment.

• The tctl and tsh clients.

  Installing `tctl` and `tsh` clients

  1. Determine the version of your Teleport cluster. The tctl and tsh clients must be at most one major version behind your Teleport cluster version. Send a GET request to the Proxy Service at /v1/webapi/find and use a JSON query tool to obtain your cluster version. Replace with the web address of your Teleport Proxy Service:

     $ TELEPORT_DOMAIN=
     $ TELEPORT_VERSION="$(curl -s https://$TELEPORT_DOMAIN/v1/webapi/find | jq -r '.server_version')"


  2. Follow the instructions for your platform to install tctl and tsh clients:

• 셀프 호스팅 PostgreSQL 인스턴스.
• 커맨드라인 클라이언트 psql이 설치되어 시스템의 PATH 환경 변수에 추가되어 있어야 합니다.
• Teleport 데이터베이스 서비스를 실행할 호스트(예: Amazon EC2 인스턴스).
• 선택 사항: 셀프 호스팅 데이터베이스에 대한 인증서를 발급하는 인증 기관.

To check that you can connect to your Teleport cluster, sign in with tsh login, then verify that you can run tctl commands using your current credentials.

For example, run the following command, assigning to the domain name of the Teleport Proxy Service in your cluster and to your Teleport username:

$ tsh login --proxy= --user=
$ tctl status
# Cluster  (=teleport.url=)
# Version  (=teleport.version=)
# CA pin   (=presets.ca_pin=)

If you can connect to the cluster and run the tctl status command, you can use your current credentials to run subsequent tctl commands from your workstation. If you host your own Teleport cluster, you can also run tctl commands on the computer that hosts the Teleport Auth Service for full permissions.

1/5단계. Teleport 토큰 및 사용자 생성#

The Database Service requires a valid join token to join your Teleport cluster. Run the following tctl command and save the token output in /tmp/token on the server that will run the Database Service:

$ tctl tokens add --type=db --format=text
(=presets.tokens.first=)

Teleport 사용자 생성#

For more detailed information about database access controls and how to restrict access see RBAC documentation.

2/5단계. 인증서/키 쌍 생성#

Teleport uses mutual TLS authentication with self-hosted databases. These databases must be able to verify certificates presented by the Teleport Database Service. Self-hosted databases also need a certificate/key pair that Teleport can verify.

By default, the Teleport Database Service trusts certificates issued by a certificate authority managed by the Teleport Auth Service. You can either:

• Configure your self-hosted database to trust this CA, and instruct Teleport to issue a certificate for the database to present to the Teleport Database Service.
• Configure the Database Service to trust a custom CA.

3/5단계. PostgreSQL 서버 구성#

PostgreSQL 서버가 TLS 연결을 수락하도록 구성하려면 앞서 생성한 server.crt, server.key, server.cas 파일을 배치한 경로를 사용하여 PostgreSQL 구성 파일 postgresql.conf에 다음을 추가합니다:

ssl = on
ssl_cert_file = '/path/to/server.crt'
ssl_key_file = '/path/to/server.key'
ssl_ca_file = '/path/to/server.cas'

이 구성을 활성화하려면 PostgreSQL 인스턴스를 재시작합니다.

자세한 내용은 PostgreSQL 문서의 SSL을 사용한 안전한 TCP/IP 연결을 참조하세요.

TLS로 연결하는 클라이언트에 대해 클라이언트 인증서 인증을 요구하도록 PostgreSQL을 구성합니다. 이는 PostgreSQL의 호스트 기반 인증 파일 pg_hba.conf에 다음 항목을 추가하여 수행할 수 있습니다:

hostssl all             all             ::/0                    cert
hostssl all             all             0.0.0.0/0               cert

또한 일치하는 더 높은 우선순위의 인증 규칙이 없는지 확인해야 합니다. 그렇지 않으면 PostgreSQL이 먼저 그 규칙을 제시하고 인증서 기반 Teleport 로그인이 실패합니다.

자세한 내용은 PostgreSQL 문서의 pg_hba.conf 파일을 참조하세요.

4/5단계. 데이터베이스 서비스 구성 및 시작#

Teleport 데이터베이스 서비스를 실행할 위치에 Teleport를 설치하고 구성합니다:

$ sudo teleport db configure create \
   -o file \
   --token=/tmp/token \
   --proxy=:443 \
   --name=example-postgres \
   --protocol=postgres \
   --uri=postgres.example.com:5432 \
   --labels=env=dev

$ sudo teleport db configure create \
   -o file \
   --token=/tmp/token \
   --proxy=:443 \
   --name=example-postgres \
   --protocol=postgres \
   --uri=postgres.example.com:5432 \
   --trust-system-cert-pool \
   --labels=env=dev

$ helm repo add teleport (=teleport.helm_repo_url=)

$ helm repo update

# 특정 데이터베이스 인스턴스의 자격 증명 제거.
$ tsh db logout example-postgres
# 모든 데이터베이스 인스턴스의 자격 증명 제거.
$ tsh db logout

SELECT pid,usename,backend_start,query FROM pg_stat_activity WHERE state = 'active';

SELECT pg_cancel_backend(<PID>);

SELECT pg_terminate_backend(<PID>);

$ tsh db connect --db-user postgres --db-name postgres postgres
psql: error: connection to server at "localhost" (::1), port 12345 failed: Connection refused
    Is the server running on that host and accepting TCP/IP connections?
connection to server at "localhost" (127.0.0.1), port 12345 failed: SSL SYSCALL error: Undefined error: 0
